Integrated balance
capability test -
Left and right leg
muscle balance analysis -
Balance ability
improvement training
FRA System
FRA (Fall Risk Assessment) is a system designed to analyze fall risk by assessing body balance, lower limb muscle mass, and leg strength through a comprehensive evaluation. The analysis results are presented as an intuitive score, allowing users to monitor changes in body balance and recognize risk factors, enabling a more effective and differentiated management approach.
This system is not limited to balance ability assessment—it also identifies individual fall risk factors and includes training modes to help improve balance ability.
Test Screen
-

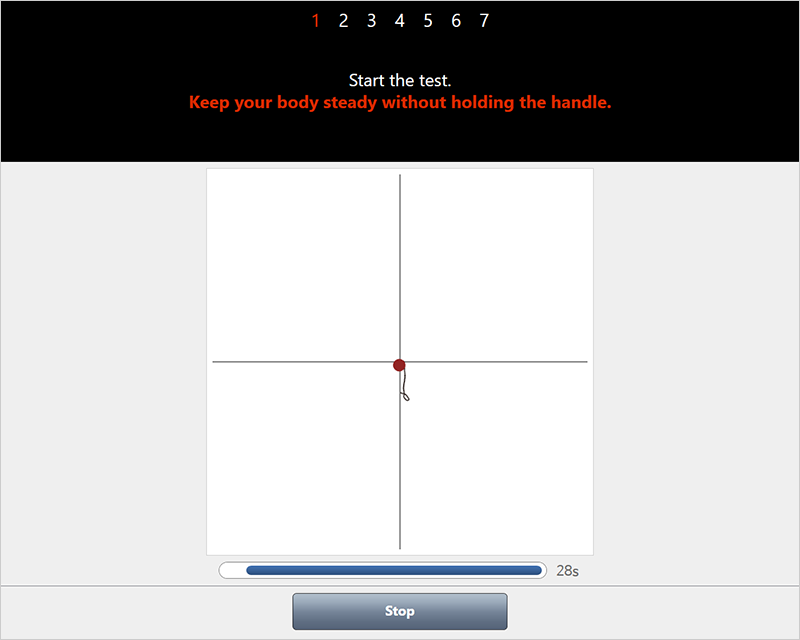

- Sensory System Test Screen
- This screen assesses the sensory factors affecting balance, including visual, somatosensory, and vestibular systems.
-

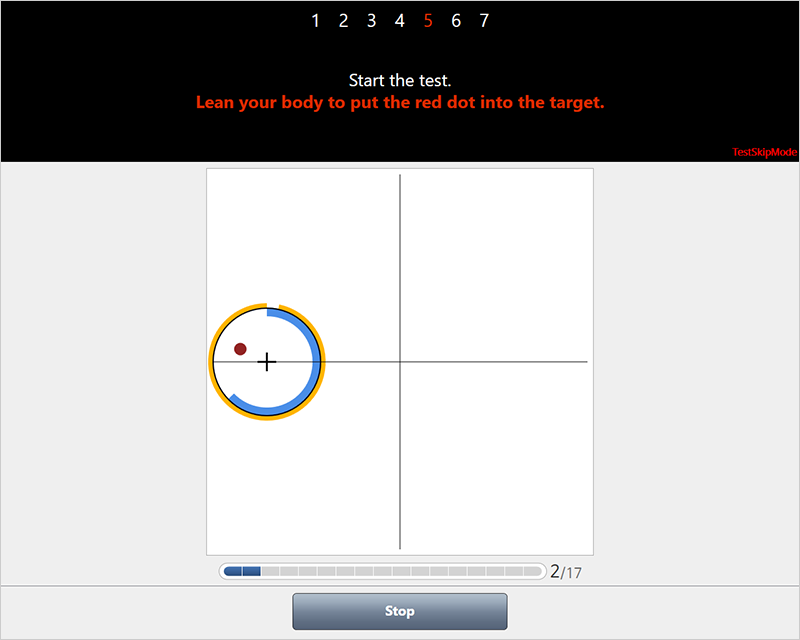

- Integrated Balance Ability Test Screen
- This test simultaneously evaluates sensory and nervous system functions to provide a comprehensive balance assessment.
-

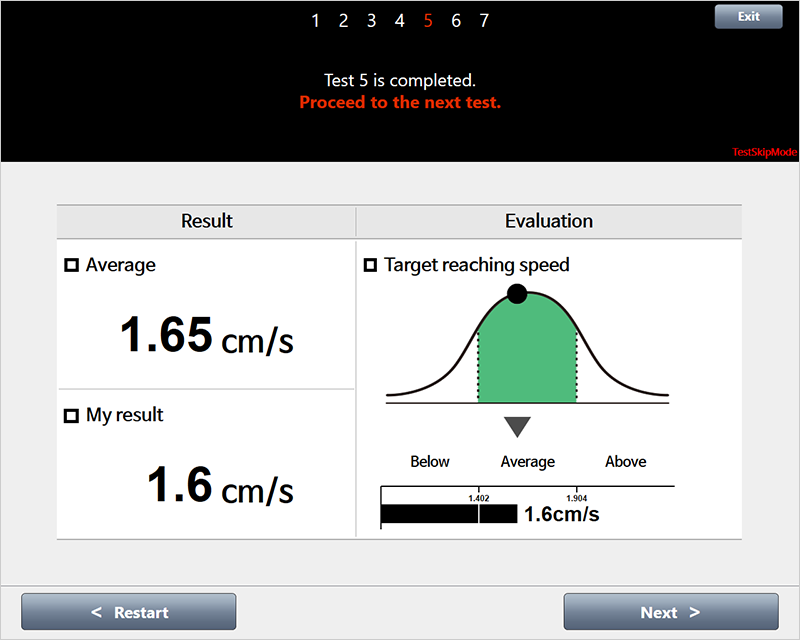

- Result Screen
- Once the test is completed, immediate feedback is provided through an intuitive display, enabling quick evaluation of the test results.

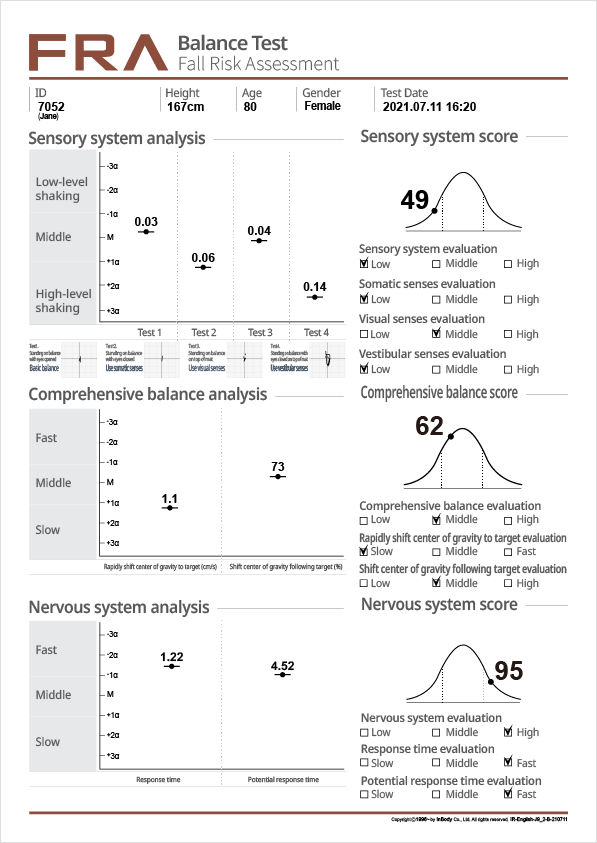

FRA results
Scores for each section, including the overall score, are provided on the four result sheets to help you understand quickly, and you can intuitively understand the results with graphs. The results consist of five parts, and user information such as personal information is shown at the top.
Specifications
-
- Product purpose
- A device that can automatically measure height and weight
- Measurement items
- Height, Weight, BMI
- Measured height
- 900~2000 mm (2 ft 11.4 inch ~ 6 ft 6.7 inch)
- Height measurement error range
- ± 1 mm
- Measured weight
- 10~200 kg (22~440 lb)
- Outcome indication
- Measurement outcome is displayed on the LCD screen
- Zero-point adjustment
- Zero adjustment is performed during the warmup (3~15 seconds) for weight measurements
-
- Measurement mode
- WH (measures both weight and height)
W (measures only weight)
H (measures only height)
- Height measurement
- AUTO (automatic height measurement after weight measurement)
MANUAL (after weight measurement, press the "ENTER" button to measure height)
- Height offset
- Can be adjusted between + 50.0 cm and -50.0 cm in 0.1 cm increments
- Weight offset
- Can be adjusted between +5.0 kg and -5.0 kg in 0.1 kg increments
Can be adjusted between +10.0 lb and-10.0 lb in 0.2 lb increments
- Measurement units
- Select between 'kg/cm' and 'lb/in'
-
- Adapter
- Power input : 100 - 240 V, 50/60 Hz, 1.2 A
Power output : DC 12 V, 3.33 A
- External interface
- Bluetooth * Applies only to the BSM270B unit
- Equipment size
- 355(W) × 455(L) × 2170(H): mm
139.8(W) × 179.1(L) × 854.3(H): inch
- Equipment weight
- 14kg(30lb)
- Operating environment
- Temperature 10 ~ 40 ℃(50 ~ 104 ℉), humidity 30 ~ 75 % RH, air pressure 70 ~ 106 kPa
- Transportation and storage environment
- Temperature -10 ~ 70 ℃(14 ~ 158 ℉), humidity 10 ~ 80 % RH, air pressure 50 ~ 106 kPa (No condensation)
* Specifications are subject to change without notice for purposes of product improvement.
